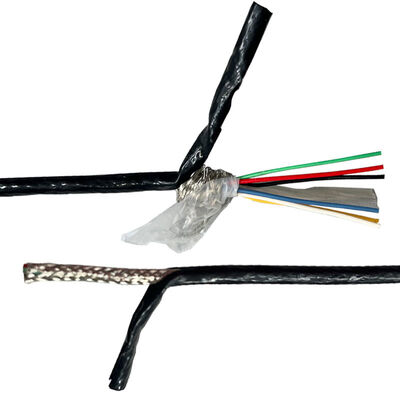

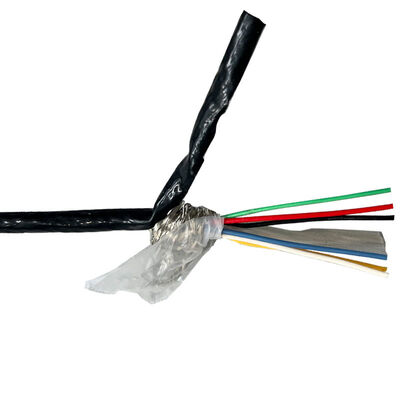

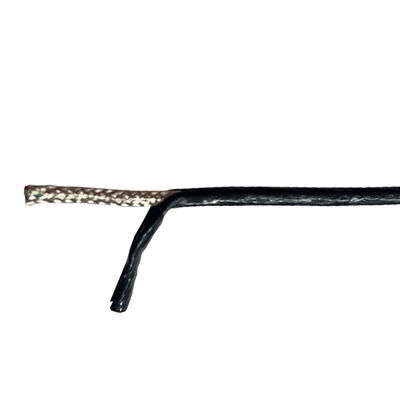

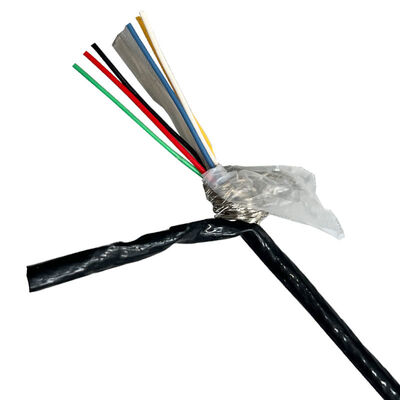

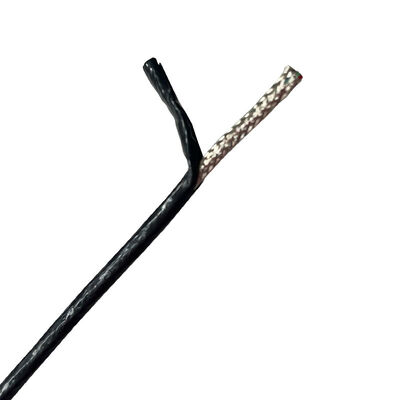

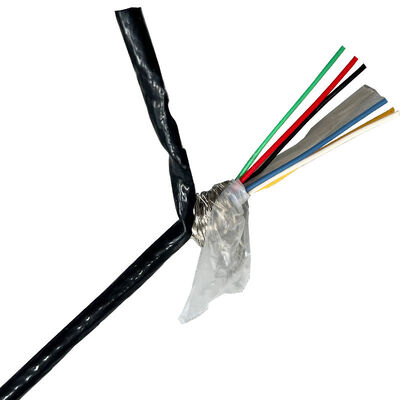

26AWG Tefzel Insulation Wire Multicores ETFE Braided Cable
ETFE Insulated Wire is engineered using advanced ETFE (Ethylene Tetrafluoroethylene) material, which provides exceptional thermal and electrical insulation properties. This makes it an ideal choice for use in high-temperature environments where traditional wire insulation materials may fail to deliver the required level of protection.
Our ETFE Insulated Wire withstands extreme temperatures ranging from -200°C to 150°C without compromising structural integrity or electrical performance. This thermal resilience makes it suitable for aerospace, automotive, and industrial manufacturing applications where exposure to harsh operating conditions is common.
In addition to thermal performance, ETFE Insulated Wire offers excellent resistance to chemicals, oils, and solvents, ensuring long-term durability and reliability in challenging environments. The wire is designed to meet stringent safety standards and delivers consistent electrical performance with low dielectric constant and high dielectric strength.
Key Features
- Small diameter saves space in compact applications
- Excellent electrical characteristics, mechanical strength, heat resistance, chemical resistance, and flame resistance
- Superior low temperature characteristics
- Higher tensile and impact strength than PTFE with greater dielectric strength and radiation resistance
Cable Specifications
| Specification |
Details |
| Conductor Materials |
Tinned Plated Copper or Silver Plated Copper |
| Conductor Type |
Stranded or Solid |
| Number of Cores |
1 Core, 2 Cores, 3 Cores, 4 Cores... |
| Insulation |
FEP, PFA, PTFE, ETFE Insulated |
| Sheath |
TPU Jacket |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-65°C to +200°C |
| Color Options |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green... |
Product Types
| Type |
Name |
| AF-200 |
Silver Plated Copper Core FEP Insulation Install Wire |
| AF-200-1 |
Tin Plated Copper Core FEP Insulation Install Wire |
| AFP-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire |
| AFS-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire |
| AFSP-200 |
Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire |
Cable Structures & Dimensions
| Wire Gauge |
Cross-section Area |
Conductor Structure |
Max. OD of Cable |
| 36AWG |
0.013mm² |
7/0.05 |
0.65-1.3mm |
| 32AWG |
0.035mm² |
7/0.08 |
0.75-1.4mm |
| 30AWG |
0.05mm² |
7/0.10 |
0.85-1.6mm |
| 28AWG |
0.07mm² |
7/0.12 |
0.9-1.65mm |
| 26AWG |
0.14mm² |
7/0.16 |
1.1-1.95mm |
| 24AWG |
0.2mm² |
19/0.12 |
1.2-1.98mm |
| 22AWG |
0.35/0.40mm² |
19/0.16 |
1.4-2.2mm |
| 20AWG |
0.5mm² |
19/0.18 |
1.6-2.4mm |
| 18AWG |
1mm² |
19/0.26 |
2.0-2.9mm |
Note: FEP high temperature lead wire specifications and core numbers are not limited to above regulations and can be customized.
About Our Company
Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier for China's aerospace and military sectors with 21 years of experience. We produce our own cable compounds, enabling us to maintain superior quality and competitive pricing for global customers.
Our main products include: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, and Power cable. We operate advanced production facilities and integrated management systems, collaborate with universities and research institutes, and offer custom cable solutions.
Exhibitions & Global Reach
We regularly participate in international exhibitions including the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen India.
As a professional wire and cable manufacturer, we export products to the US, Venezuela, India, Vietnam, Bangladesh, Africa, and other countries. We welcomed the delegation from Ezeagu Government of Nigeria to our factory in 2017, establishing long-term partnerships.
Certifications & Honors
- Participated in China's Shenzhou 7 manned space flight project development and construction
- Carried out China's first manned space project development, construction, and testing tasks
- Collaborated with China Academy of Launch Vehicle Technology on the "Arrow of God" project for space exploration
Why Choose Shenzhou Cable
- Free technical consultation before, during, and after sales
- Free samples and design services
- Monitoring and detection services during manufacturing
- 100% free insurance for internal transportation
- OEM & ODM services welcome
- Small order quantities accepted
Packing & Shipping
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer engaged in research, development, and sales of military and consumer cable wire and cable compounds. The company is located in Hunan Province, China.
What are your company's strengths?
We are a stable wire and cable supplier for China's aerospace and military with 21 years of experience. We produce our own cable compounds, enabling superior quality and competitive pricing.
How do you guarantee your product quality?
Quality is our priority. We implement strict quality control from design and materials procurement through manufacturing, semi-finished product testing, and finished product inspection.
What's the warranty of your products?
We provide a 1-year complete warranty service. If products have quality problems, we replace or return them unconditionally.
How can I get samples?
We can prepare sample orders. For small quantities available in stock, samples are free but freight costs are the customer's responsibility.
