Aperçu /Produits/FEP a isolé le fil/Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications

Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications

500
MOQ
Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Matériau conducteur: Cuivre, Cuivre étamé ou Cuivre plaqué argent
Matériel d'isolation: Le FEP
Type de conducteur: Échoué ou solide
Numéro noyau: Noyau unique ou plusieurs cœurs
Tension nominale: 600V ou moins
Température nominale: -65°C ~ +200°C
Jauge en fil: 36AWG à 8AWG
Aire de la section transversale: 0,013 mm² à 8 mm²
Structure de conducteur: 7/0,05 à 133/0,28
OD maximum: 0,65 mm à 7,3 mm
Options de couleur: Blanc, bleu, rouge, noir, jaune, vert, transparent, jaune / vert
Type d'isolation: FEP, PTFE, PFA
Type échoué: Échoué ou solide
Température de travail: -65°C ~ +200°C
Tension nominale: C.A. 600V ou inférieur
Mettre en évidence:

Corrosion Resistant FEP Aircraft Wire

,

Oil Resistant FEP Insulated Wire

,

Strong Acid Resistant Silver Plated FEP Wire
Informations de base
Lieu d'origine: Hunan, Chine
Nom de marque: Sanco cable
Numéro de modèle: Série AF-200
Conditions de paiement et expédition
Description de produit

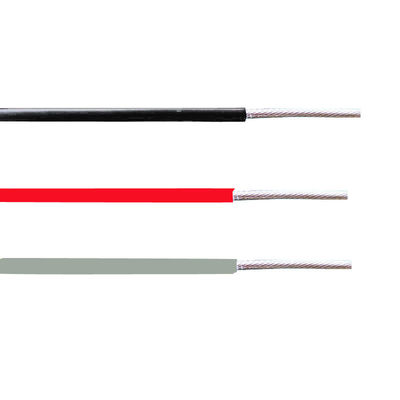

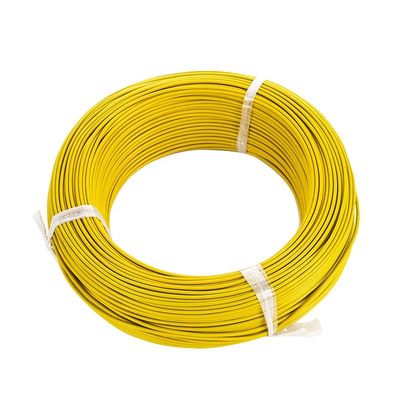

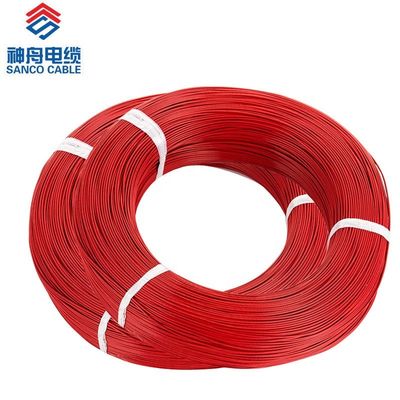

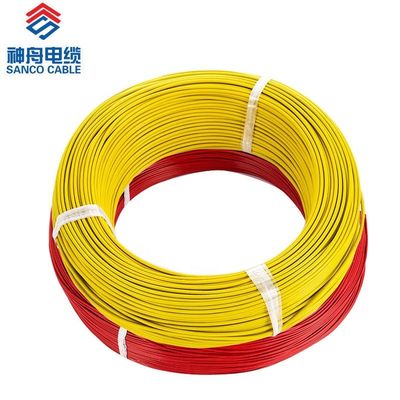

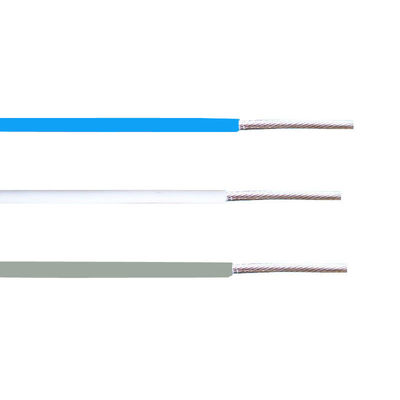

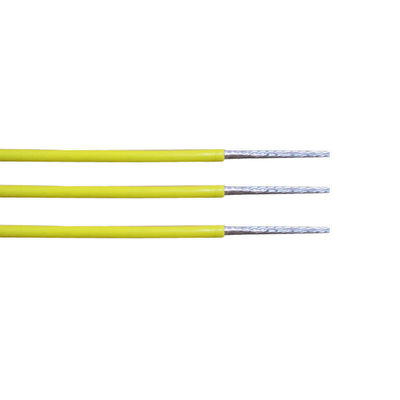

AF200 Silver Plated FEP Aircraft Wire

FEP Insulation Wires feature excellent corrosion resistance, oil resistance, and resistance to strong acids, alkalis, and oxidants. They offer superior electrical insulation performance with high voltage resistance, minimal high-frequency loss, moisture resistance, and excellent insulation properties. These wires also provide outstanding fire resistance, aging resistance, and long service life.

Applications include:

  • Electronic industry: Temperature compensation wire, low/high temperature wire, aging wire, flame retardant wire
  • Household appliances: Internal wiring for air conditioners, microwave ovens, electronic disinfecting cabinets, rice cookers, electric heaters, ovens, frying pans, and lighting fixtures
Product Features
  • Wear and scratch resistant
  • Easy to strip
  • High and low temperature resistant (-65°C to +200°C)
  • Anti-aging and corrosion resistant
  • Electromagnetic interference resistant
Cable Specifications
Conductor Materials Tinned Plated Copper, Silver Plated Copper, Bare Copper
Conductor Type Stranded or Solid
Number Core Single Core or Multiple Cores
Insulation FEP, PTFE, PFA Insulated
Rated Voltage 600V or Below
Rated Temperature -65°C to +200°C
Color White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green
Types and Names
Type Name
AF-200 Silver Plated Copper Core FEP Insulation Install Wire
AF-200-1 Tin Plated Copper Core FEP Insulation Install Wire
AFP-200 Tin Plated or Silver Plated Copper Core FEP Insulation Shield Install Wire
AFS-200 Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Install Wire
AFSP-200 Tin Plated or Silver Plated Copper Core FEP Insulation Stranded Shield Install Wire
Cable Structures
Wire gauge Cross-section area Conductor structure Max. OD of cable
Xiangtan Shenzhou Special Cable Co., LTD

With 21 years of experience, we are a stable wire and cable supplier for China's aerospace and military sectors. Our self-produced cable compounds ensure superior quality and competitive pricing. Main products include:

  • High Temperature wires
  • PTFE cable
  • FEP Cable
  • PFA Wire
  • ETFE Cable
  • Fluoroplastic Cables
  • Hook up wire
  • Electronic cable
  • Power cable

We have advanced production facilities, integrated management systems, and collaborate with universities and research institutes to provide customized cable solutions.

Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications 0
Our Honors
  • Participated in China's manned space flight project development for Shenzhou 7
  • Contributed to China's first manned space flight mission
  • Recognized by China Academy of Launch Vehicle Technology for the "Arrow of God" project
Our Service
  • Free technical consultation before, during, and after sales
  • Free samples and design services
  • Special monitoring during manufacturing process
  • 100% free insurance for internal transportation
  • OEM & ODM services
  • Small order fulfillment
FAQ
Q: Are you a manufacturer or trading company?

A: We are a professional manufacturer of military and consumer cable wire and cable compound, located in Hunan Province, China.

Q: What is your company's strengths?

A: As a 21-year supplier to China's aerospace and military sectors, we produce our own cable compounds to maintain superior quality and competitive pricing.

Q: How do you guarantee product quality?

A: We implement strict quality control from design and material procurement through manufacturing and final inspection.

Q: What's the warranty of your products?

A: We provide a 1-year complete warranty with unconditional replacement or return for quality issues.

Q: How can I get samples?

A: We provide sample orders, with free samples available for small quantities in stock (customer pays freight).

Corrosion Resistant Oil Resistant Strong Acid Resistant Silver Plated FEP Aircraft Wire for High Temperature Applications 1
