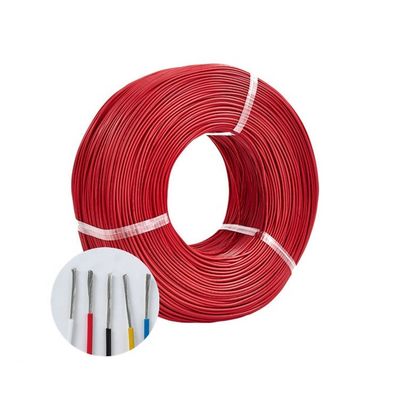

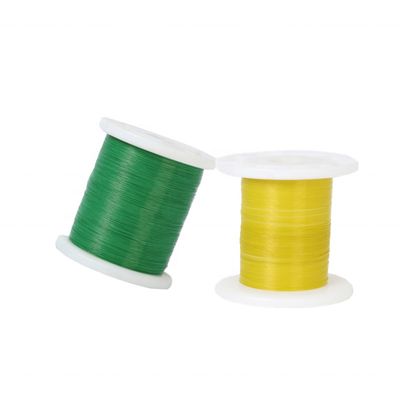

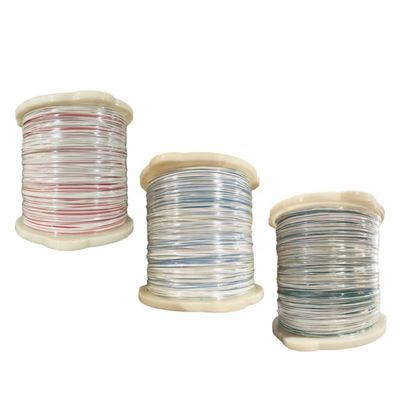

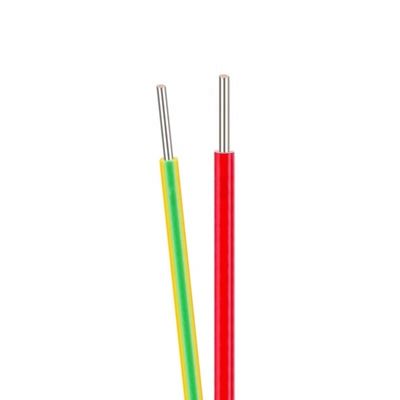

Double Color High Temperature 22awg Tin Plated FEP Coated Wire
What is FEP Coated Wire?
FEP coated wire is a type of electrical wire insulated with FEP polymer, a high-performance fluoropolymer known for its excellent chemical resistance, high-temperature stability, and low friction properties.
Key Characteristics of FEP Coated Wire:
- Temperature Resistance: Withstands temperatures from -200°C to +200°C (-328°F to +392°F), ideal for high-temperature applications.
- Chemical Resistance: Highly resistant to acids, bases, and solvents, suitable for harsh environments.
- Electrical Properties: Excellent dielectric properties for effective insulation, reducing short circuit risks.
- Low Friction: Beneficial for moving parts or applications where wires may rub against surfaces.
- Non-stick Surface: Prevents material adhesion to the wire.
Applications:
- Aerospace: Wiring in aircraft and spacecraft where high performance is critical.
- Medical Devices: Applications requiring sterilization and chemical resistance.
- Industrial Equipment: Sensors, heaters, and equipment exposed to harsh environments.
- Electronics: High-frequency applications due to excellent dielectric properties.
Specifications
| Application |
For the connection of internal wire of electronic equipment, electrical appliances and instruments |
| Advantages |
Wear resistant, scratch resistant, easy to rip off, high and low temperature resistant, anti-aging, corrosion resistant, anti-interference |
| Color |
Double color or black, brown, red, orange, yellow, green, blue, purple, gray, white and transparent |
| Conductor |
Tinned copper wire |
| Insulation |
FEP coated |
| Conductor Type |
Stranded / Solid |
| Working Temperature |
-65℃ to +200℃ |
| Rated Voltage |
AC 600V |
| Wire Gauge |
36awg~3/0awg |
| Core Number |
Single Core |
| Packing Length |
As required |
| Free Sample |
Yes |
Company Profile
Shenzhou Special Cable is a leading manufacturer of custom wires and cables, specializing in high temperature wire (PTFE, PFA, FEP, ETFE), Robot cable, Crane cable, and Drag chain cable. Our products are widely used in aerospace, robotics, oil fields, wind power, rail locomotives, and electronics.
Our factory features a technical team with perfect quality control to provide high quality products worldwide, including USA, Mexico, France, Croatia, Czech, Pakistan, Australia, and Dubai.
After 20 years of development, our products have been used in National Rocket and China Manned Space Engineering Program, with certifications including weapons equipment quality management system, ISO9001, and CCC.
Our Facilities
- 7000+ sqm standard factory with 14 production lines
- High quality or imported raw materials with better chemical and heat resistance
- Annealed pure copper with low resistance
Quality Control
Strict inspection before shipment including Annealing test, Tensile test, Conductor resistance test, Thickness of Insulation test and Measurement of overall diameter.
- 500+ sqm professional testing laboratory
- Advanced cable testing equipment
- Professional QC team
Experience
With more than 20 years experience in cable production, we have participated in Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, and Power-Gen in India.
Our Team
Shenzhou Special Cable has more than 80 skilled technicians and employees with professional experience.
We focus on custom wire cable solutions including:
- PTFE Wire
- FEP Wire
- PFA Wire
- ETFE Wire
- PUR Cable
- TPE Cable
- Fiberglass cable
Why Choose Us
- More than 20 years of special cable R&D and manufacturing experience
- Certified by CCC, Weapons and equipment, ISO9001 system
- Stable supplier for China's aerospace and military
- Advanced cable testing equipment
- Low MOQ for custom cable
- Free samples and design services
- 1~3 year warranty period
Packing & Delivery
Professional, environmentally friendly, convenient and efficient packaging services:
- Packing in roll with carton boxes
- Packing in spool with carton boxes
- Packing with barrel or pallet
- Packing in wooden tray
