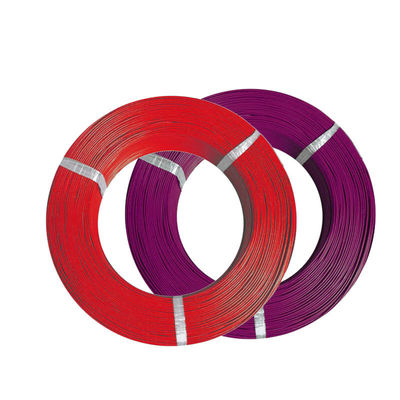

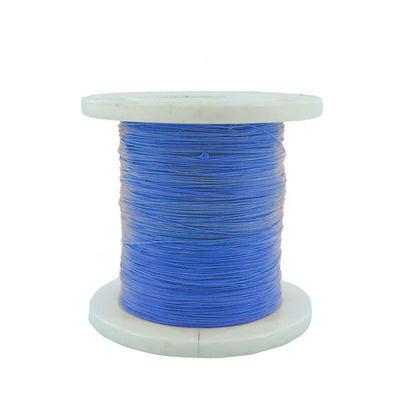

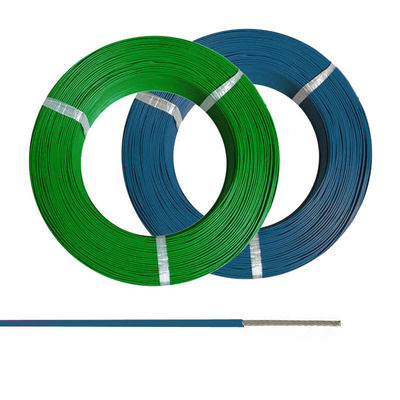

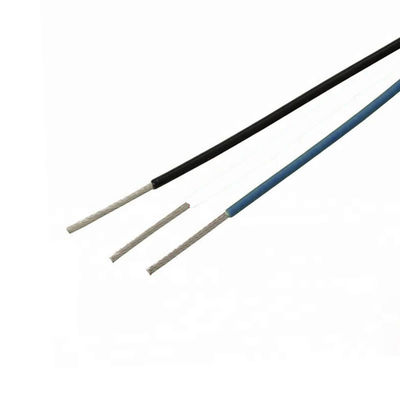

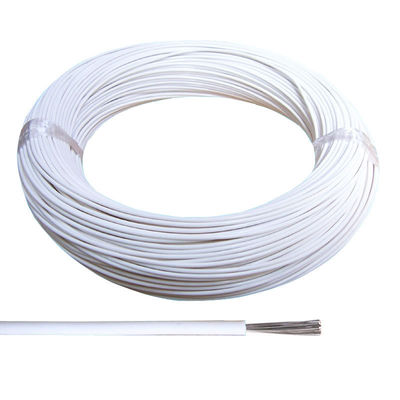

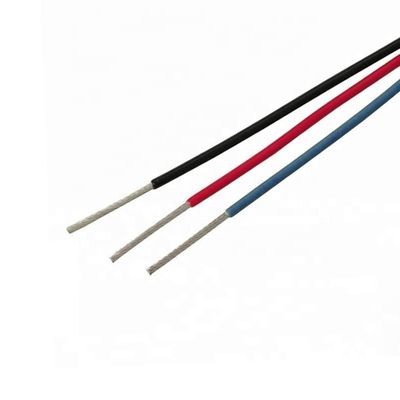

Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications

500
MOQ
Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Matériau conducteur: Cuivre, Cuivre étamé ou Cuivre plaqué argent
Diamètre: 22 AWG, 20 AWG, 24 AWG, 16 AWG, 18 AWG
Matériel d'isolation: Le FEP
Tension nominale: C.A. 600V ou inférieur
Type de conducteur: Échoué
Forme: Rond
Taille du fil unique: 0,3 mm, 0,5 mm, 1,2 mm, 1,0 mm
Plage de température: -65°C ~ +200°C
Type d'isolation: FEP, PTFE, PFA, ETFE isolés
Numéro de base: À un noyau ou Multicores
Température de travail: -65°C ~ +200°C
Options de couleur: Blanc, bleu, rouge, noir, jaune, vert, transparent, jaune / vert
OD maximum: 0,65 mm à 7,3 mm (varie selon la jauge)
Aire de la section transversale: 0,013 mm² à 8 mm² (varie selon le calibre)
Structure de conducteur: 7/0,05 à 133/0,28 (varie selon la jauge)
Mettre en évidence:

19 Strands FEP Heating Wire

,

Round Shape FEP Insulated Wire

,

Single Core High Temperature Wire
Informations de base
Lieu d'origine: Hunan, Chine
Nom de marque: Sanco cable
Numéro de modèle: Série AF-200
Conditions de paiement et expédition
Description de produit
Tinned Copper 19 Strands FEP Heating Wire

FEP Insulated Wire refers to electrical wire insulated with Fluorinated Ethylene Propylene (FEP), a high-performance fluoropolymer known for its excellent electrical, thermal, and chemical resistance properties.

Key Features of FEP Insulated Wire
  • High-Temperature Resistance - Operates effectively in temperatures ranging from -65°C to +200°C (-85°F to +392°F). Suitable for extreme environments, including aerospace and industrial applications.
  • Excellent Dielectric Properties - Low dielectric constant and dissipation factor, making it ideal for high-frequency and high-speed signal transmission.
  • Chemical Resistance - Resistant to acids, solvents, fuels, and corrosive chemicals.
  • Low Friction & Non-Stick Surface - Smooth insulation reduces insertion force in connectors and prevents sticking.
  • Flexibility & Durability - Maintains flexibility even at low temperatures.
Common Applications
  • Aerospace & Defense (wiring harnesses, avionics)
  • Medical Devices (catheters, surgical tools)
  • Telecommunications (high-speed data cables)
  • Semiconductor & Electronics (high-precision wiring)
  • Industrial & Automotive (under-hood wiring, sensors)
Comparison with Other Insulation Types
Property FEP PTFE PVC Silicone
Max Temp 200°C 250°C 105°C 180°C
Flexibility Excellent Good Good Excellent
Chemical Resist Excellent Excellent Moderate Good
Cost High High Low Medium
Cable Specifications
Conductor Materials Tinned Plated Copper, Silver Plated Copper, Bare Copper
Conductor Type Stranded or Solid
Number Core Single Core or Multiple Cores
Insulation FEP, PTFE, PFA Insulated
Rated Voltage 600V or Below
Rated Temperature -65°C to +200°C
Color White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green
Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications 0
Cable Structures
Wire gauge Cross-section area Conductor structure Max. OD of cable
36AWG 0.013mm² 7/0.05 0.65
32AWG 0.035mm² 7/0.08 0.75
30AWG 0.05mm² 7/0.10 0.85
28AWG 0.07mm² 7/0.12 0.9
- 0.1mm² 7/0.14 1
26AWG 0.14mm² 7/0.16 1.1
24AWG 0.2mm² 19/0.12 1.2
- 0.3mm² 7/0.23 1.25
22AWG 0.35/0.40mm² 19/0.16 1.4
20AWG 0.5mm² 19/0.18 1.6
- 0.6mm² 19/0.20 1.75
- 0.75/0.80mm² 19/0.23 1.8
18AWG 1mm² 19/0.26 2
16AWG 1.2mm² 19/0.28 2.2
- 1.5mm² 19/0.32 2.4
14AWG 2mm² 19/0.37 2.7
- 2.5mm² 37/0.30 3.4
12AWG 3mm² 37/0.32 3.6
- 4mm² 37/0.37 4
10AWG 5mm² 37/0.41 4.5
- 6mm² 37/0.45 4.8
8AWG 8mm² 133/0.28 6

Note: FEP high temperature lead wire specification and core no. are not limited to above regulation, they could be customized.

Company Information

Xiangtan Shenzhou Special Cable Co., LTD is a stable wire and cable supplier of China's aerospace and military, with 21 years experience. Cable compounds produced by ourselves, that is why we can keep superior quality and competitive offers for global valued customers.

Our Main products are: High Temperature wires, PTFE cable, FEP Cable, PFA Wire, ETFE Cable, Fluoroplastic Cables, Hook up wire, electronic cable, Power cable and so on. Also we have advanced production facility and integrated management system, we also have good cooperation with many universities and research institutes in addition we can customize the cable according to customer's demand. So best quality and cheapest price we can provide you.

Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications 1
EXHIBITION & VISIT
Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications 2

In the past years, We participated in the Middle East Electricity Exhibition in Dubai, China-ASEAN Exposition, Power-Gen India...

Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications 3

As a professional wire and cable manufacturer, Xiangtan Shenzhou Special Cable CO.,LTD has exported the products to US, Venezuela, India, Vietnam, Bengal, Africa and some other countries. We warmly welcome the delegation from Ezeagu Government of Nigeria visit our factory in 2017, they are long-time partner of our company.

CERTIFICATION
Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications 4
Our Honors:
  • Xiangtan Shenzhou Special Cable Co., Ltd took part in China manned space flight project development, construction and related cooperation for Shenzhou 7 manned space flight completed successfully.
  • Xiangtan Shenzhou Special Cable Co., Ltd carried out the project China manned space project development, construction and test task, for first manned flight task complete success.
  • China Academy of Launch Vehicle Technology Institution: The "Arrow of God" project for the first time China's astronaut taking the outer space exploration.
WHY CHOOSE US
Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications 5
Our Service
  • Free technical consultation service before, during, and after sales, help customers to choose right product
  • Free sample and design services
  • Free service for any special monitor and conduct detection during manufacture process
  • Provide 100% free insurance for internal transportation
  • OEM & ODM is welcome
  • Small order can be supplied
PACKING & SHIPPING
Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications 6
FAQ
Tinned Copper 19 Strands FEP Heating Wire with Round Shape and Single Core for High Temperature Applications 7
1). Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer, research, development and sales of military and consumer cable wire and cable compound. The company is located in Hunan Province, China.
2). Q: What is your company's strengths?
A: We are a stable wire and cable supplier of China's aerospace and military, with 21 years experience. Cable compounds produced by ourselves. This is how we keep superior quality and competitive offers for global valued customers.
3). Q: How do you guarantee your product quality?
A: Quality is our priority. We treat quality control as the first most important thing from the very beginning to the very end. In design, materials procurement, manufacturing semi-finished products testing, finished product inspection such as strict control to ensure product quality.
4). Q: What's the warranty of your products?
A: We provide 1 year complete warranty service. If the products have quality problems, we plan to replace or return unconditionally.
5). Q: How can I get the samples?
A: We can make the sample order for you. And if the sample quantity is small and available in our stock, we can provide you by free, but the freight should be absorbed by your side.
