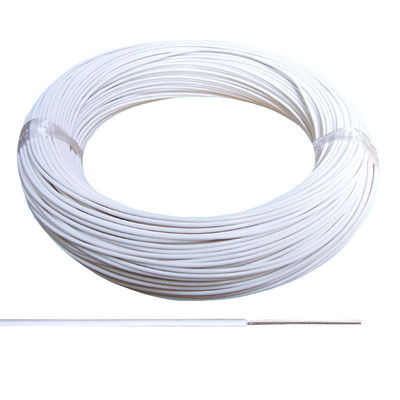

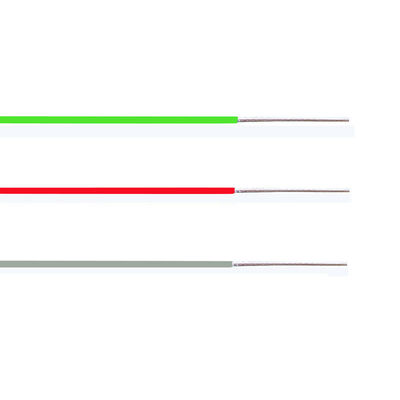

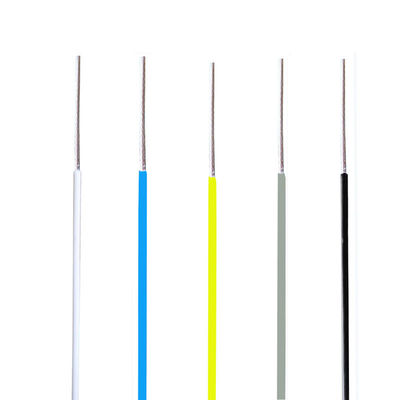

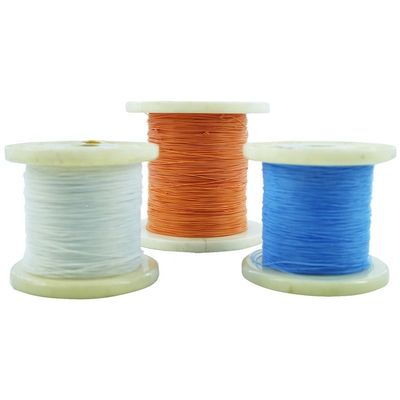

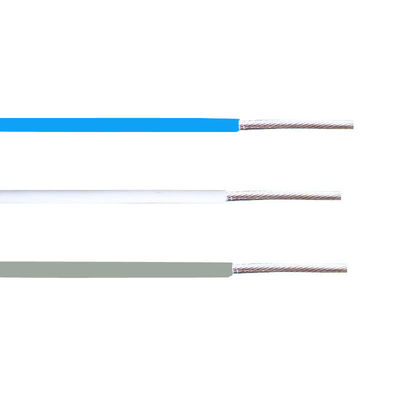

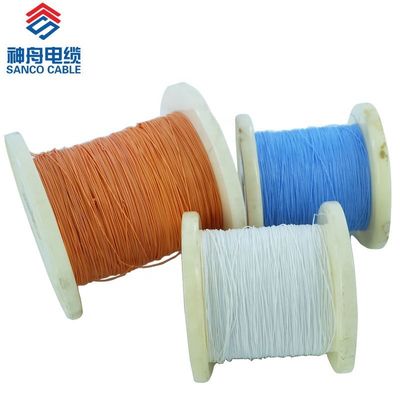

High Temperature Ultra Thin PTFE Hook Up Wire
Applications
PTFE Wire is used for:
- Oil equipment
- Electric machinery
- Automotive cables
- Outdoor lighting
- PTC thermistors
- Electric components
PTFE Cable can be used in:
- Temperature compensating wire
- Low temperature-resist wire
- High temperature heat wire
- Aging-resistance wire
- Fire-resist wire
- Household appliances (air-conditioning, microwave ovens, electric cookers, heaters, ovens, lamps, etc.)
Product Features
- Excellent corrosion resistance
- Oil, acid, alkali, and oxidant resistance
- Superior electrical insulation capability
- High voltage and moisture resistance
- Flame-retardant and anti-aging properties
- Long service life
Cable Specifications
| Specification |
Details |
| Conductor Materials |
Silver Plated Copper or Bare Copper |
| Conductor Type |
Stranded or Solid |
| Insulation |
PTFE, FEP, PFA Insulated |
| Number Core |
Single Core or Multiple Cores |
| Size |
0.05~4mm² |
| Rated Voltage |
600V or Below |
| Rated Temperature |
-80~+250ºC |
| Color |
White, Blue, Red, Black, Yellow, Green, Transparent, Yellow/Green |
Types and Names
| Type |
Name |
| AFR-200 |
Bare Copper wire conductor PTFE film insulated lead wire |
| AFR-250 |
Silver plated copper wire conductor PTFE film insulated lead wire |
| AFP |
Bare Copper wire conductor PTFE film insulated screen lead wire |
| AFP-1 |
Silver plated copper wire conductor PTFE film insulated screen lead wire |
| AFRP-200 |
Bare Copper wire conductor PTFE film insulation shield lead wire |
| AFRP-250 |
Silver plated wire copper conductor PTFE film insulation shield lead wire |
| AFRPF-250, AFPF |
Silver plated wire copper conductor PTFE film insulation PTFE film sheath shield lead wire |
Technical Specifications
| Wire gauge |
Cross-section area (mm) |
Conductor structure |
Max resistance at 20℃ (Ω/KM) |
Max OD of wire (mm) |
Reference weight (kg/km) |
| 36AWG |
0.012 |
7/0.05 |
1450 |
0.85 |
0.98 |
| 32AWG |
0.035 |
7/0.08 |
580 |
0.95 |
1.37 |
| 30AWG |
0.05 |
7/0.10 |
380 |
1.05 |
1.67 |
| 28AWG |
0.07 |
7/0.12 |
260 |
1.1 |
2.02 |
| - |
0.1 |
7/0.14 |
180 |
1.2 |
2.42 |
| 26AWG |
0.14 |
7/0.16 |
130 |
1.3 |
2.85 |
| 24AWG |
0.2 |
19/0.12 |
84.5 |
1.4 |
3.85 |
| - |
0.3 |
19/0.14 |
61 |
1.48 |
5.65 |
| 22AWG |
0.35/0.40 |
19/0.16 |
49.5 |
1.6 |
5.74 |
| - |
0.5 |
19/0.18 |
37.1 |
1.8 |
7.39 |
| 20AWG |
0.6 |
19/0.20 |
30.1 |
1.98 |
10.7 |
| - |
0.75/0.80 |
19/0.23 |
22.7 |
2.1 |
10.9 |
| 18AWG |
1 |
19/0.26 |
19 |
2.2 |
13.3 |
| 16AWG |
1.2 |
19/0.28 |
15.3 |
2.4 |
15 |
| - |
1.5 |
19/0.32 |
11.7 |
2.6 |
19.7 |
| 14AWG |
2 |
19/0.37 |
9.45 |
2.9 |
25.2 |
| - |
2.5 |
37/0.30 |
7.4 |
3.6 |
33 |
| 12AWG |
3 |
37/0.32 |
6.03 |
3.5 |
36.9 |
| - |
4 |
37/0.37 |
5 |
3.9 |
47.5 |
| 10AWG |
5 |
37/0.41 |
4.1 |
4.37 |
47.5 |
| - |
6 |
49/0.39 |
3.3 |
5 |
70.1 |
Note: Extruded PTFE cable core number and specifications can be
customized.
